Description
Features:
-
Massive output up to 324 m²/h with sixteen industrial Ricoh Gen6 heads.
-
High-precision magnetic system and linear rail for superior accuracy at speed.
-
Advanced conveyor and ink delivery systems for non-stop industrial production.
| Specification | Details |
|---|---|
| Control System | BYHX |
| Printing Width | 1.85m & also available for (2.2m/2.6m) |
| Colors | 8 Color |
| Media Conveyor | Conveyor Belt |
| Carriage | Auto. Lifting(3-30mm adjustable) |
| Media Height | 3-5mm |
| Carriage Scanning | High Precision Magnetic System |
| Ink Supply | Negative Pressure Ink Delivery System |
| Feeding System | Modular feeding unit (Up to 400mm diameter) |
| Water Unit | Sponge + Scraper + Brush + Towel roller |
| Print Media | Pure Cotton & Viscose |
| RIP Software | NeoStampa |
| Data Transmission | USB 3.1 |
| Power | Printer – 220 V, 104 A Single / Three phase load distribution, 50Hz Dryer – AC 220 kW, 20 A, 50/60 Hz |
| Net Weight | 3500kg(Approx) |
| Dimension (L x W x H) | 2342(L)mm x 5020(W)mm x 1975(H)mm |
| Carriage System | Magnetic Linear Rail |

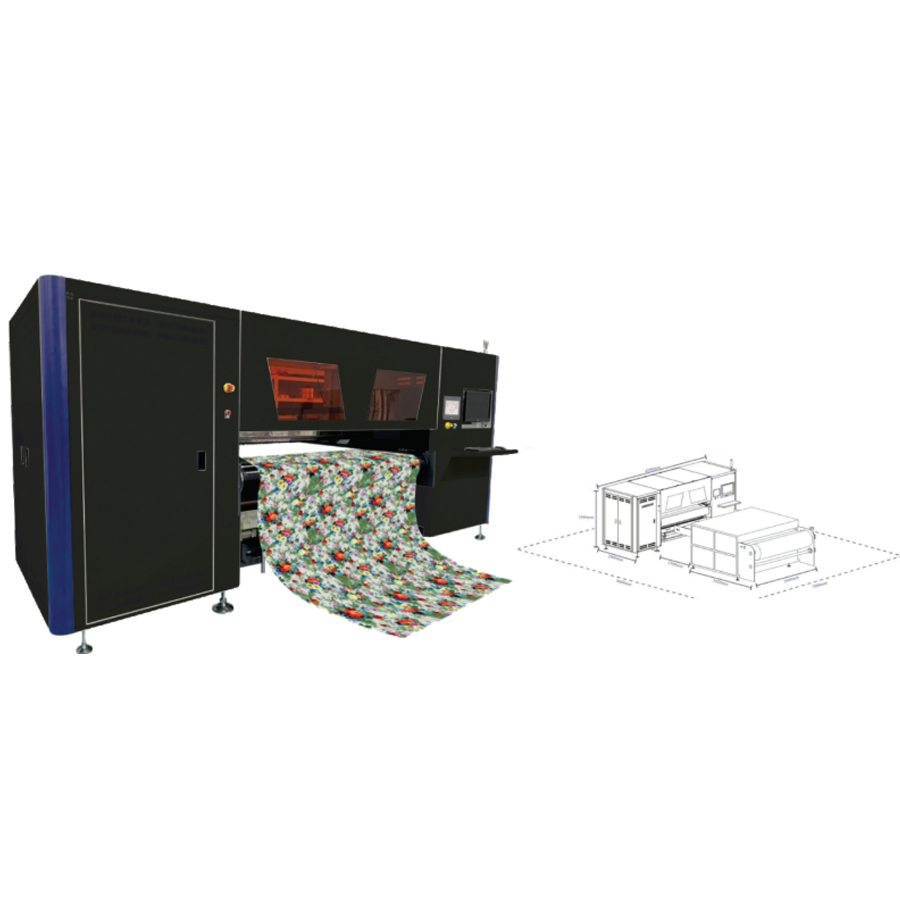

Experience the pinnacle of textile printing with the GFX 16 Head Reactive Printer, featuring sixteen industrial Ricoh Gen6 heads. This machine is engineered for ultra-high-speed production, reaching up to 324 m²/h for direct printing on natural fabrics like pure cotton and viscose.
It combines a high-precision magnetic carriage system with a robust conveyor belt for unmatched accuracy and stability at high speeds. With its versatile ink support and industrial build, this printer is the ultimate solution for large-scale fashion and home textile manufacturing.
