Description
Features:
-
Hyper-speed output up to 560m²/h with up to 32 Ricoh Gen6 heads.
-
High precision magnetic linear rail system for extreme accuracy.
-
Advanced inflatable shaft and tension bar feeding system for stability.
| Specification | Details |
|---|---|
| Control System | BYHX |
| Printing Width | 1.85m & also available for (2.2m/2.6m) |
| Colors | 4/8 Color |
| Media Conveyor | Conveyor Belt |
| Carriage | Auto. Lifting(3-30mm adjustable) |
| Media Height | 3-5mm |
| Carriage Scanning | High Precision Magnetic Linear RailerSystem |
| Ink Supply | Negative Pressure Ink Delivery System |
| Feeding System | Inflatable Shaft + Tension Bar |
| Water Unit | Sponge + Scraper + Brush + Towel roller |
| Print Media | Pure Cotton & Viscose |
| RIP Software | NeoStampa |
| Data Transmission | USB 3.0 |
| Power | Printer – 23 kW Dryer – 30 to 40 kW |
| Net Weight | 1000kg(Approx) |
| Dimension (L x W x H) | 4721(L)mm x 4330(W)mm x 2068(H)mm |
| Carriage System | Magnetic Linear Rail |

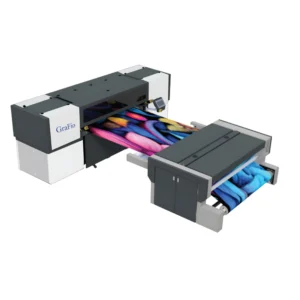

Reach the apex of industrial textile printing with the GFX-RE-RG632-1.1, a hyper-speed machine equipped with up to 32 Ricoh Gen6 heads. It is engineered for extreme mass production, achieving blistering speeds of 560m²/h while printing directly onto pure cotton and viscose.
This printer ensures flawless precision at maximum velocity with its High Precision Magnetic Linear Railer System. Combined with an industrial inflatable shaft feeding system and a robust conveyor belt, it offers unparalleled stability for the highest volume fabric printing operations.
